TSM-F IP40 Transparent Cover Flush Plastic DB Enclosure

Key information
TSM-F flush transparent cover IP40
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
               Body - ABS
Color: White
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar

Technical specification

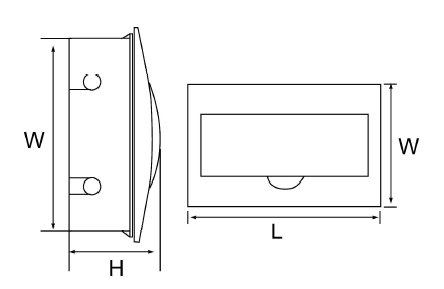

SpecificationDimension (L×W×H)

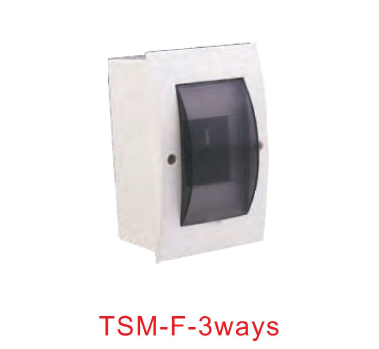

TSM-F-3ways95×150×60
TSM-F-4ways136×221×90

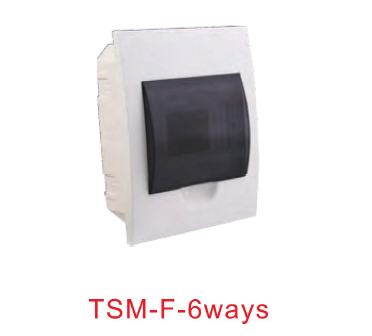

TSM-F-6ways172×221×90

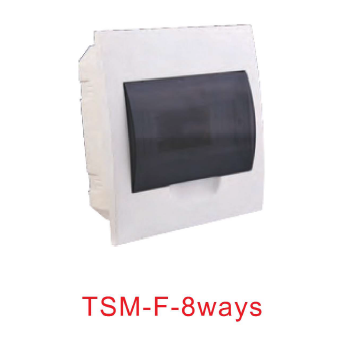

TSM-F-8ways208×221×90
TSM-F-10ways246×221×90

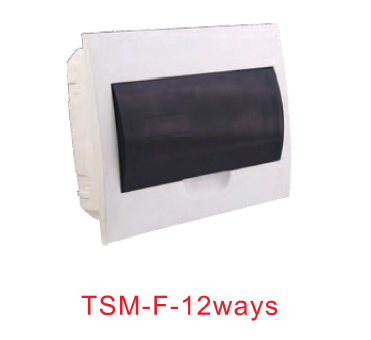

TSM-F-12ways278×221×90
TSM-F-15ways334×221×90
TSM-F-18ways398×251×100

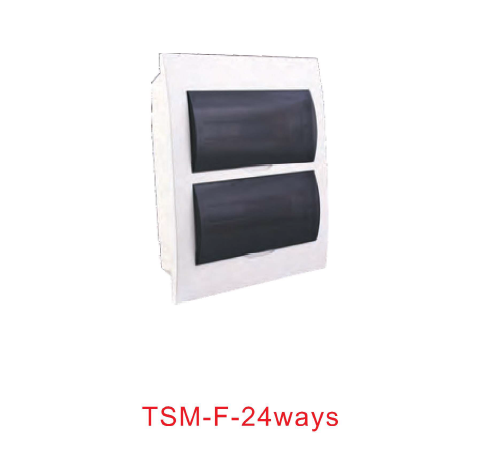

TSM-F-24ways300×350×100

TSM-F-36ways300×482×100

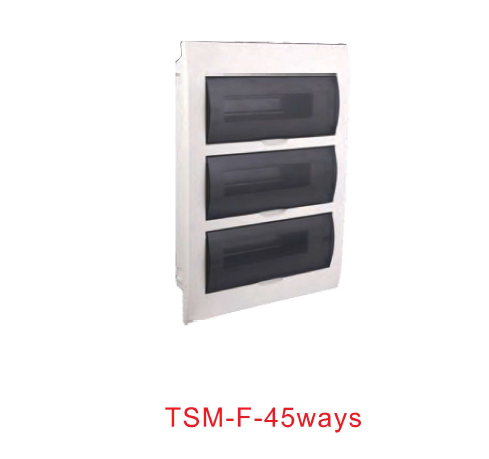

TSM-F-45ways365×505×110
