DIN Rail Mini Circuit Breaker

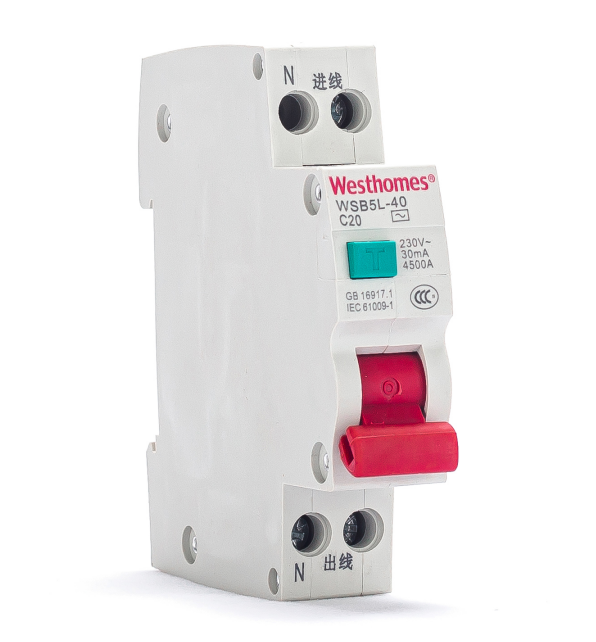

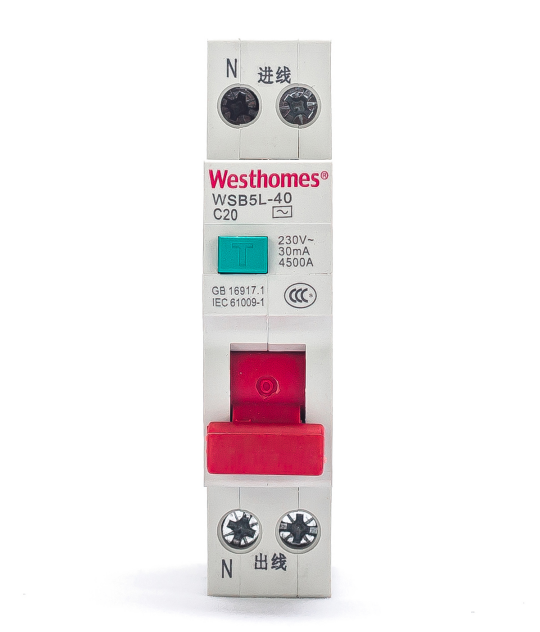

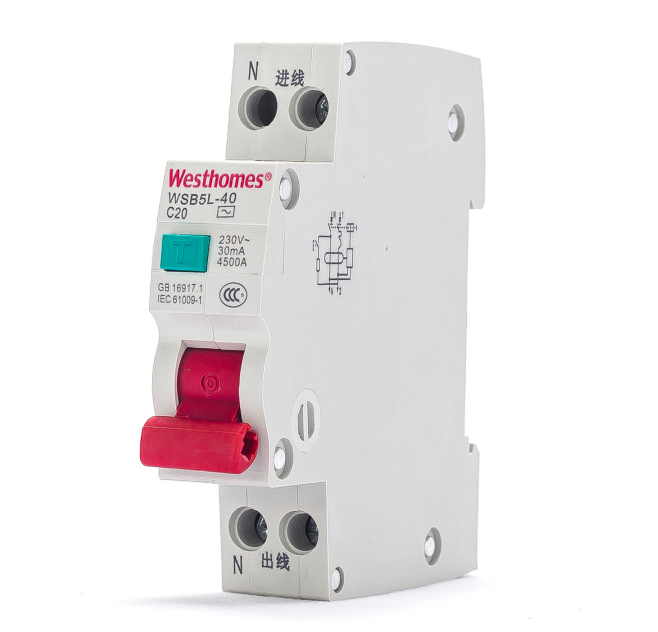

MCB WSB5L-40 (Phase+Neutral+Earth Leakage)
- Product ID： Miniature Circuit Breaker WSB5L-40 PHASE+NEUTRAL+EARTH LEAKAGE
- size： 18mm 1P+N 4.5kA 30mA
- INQUIRY
Key Information
WSB5L-40
Pole: 1P+N
Voltage: AC230V
kA: 4.5kA
Amps: 6, 10, 16, 20, 25, 32,40

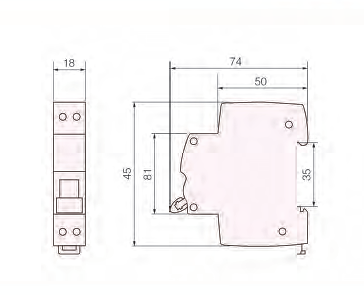

Width: 18mm
General
WSB5L-40 series (phase+neutral+earth leakage) circuit breaker is applied in single phase residential line o AC 50Hz or 60Hz, rated voltage 230V for earth leakage protection, as well as protection of overload and short circuit for civil electrical line. The product is small in volume, big in breaking capacity. It can stll make earth leakage protection even null and live lines cut meanwile, and live line connects reversely. It meets standards IEC/EN61009-1 and GB16917.1
Main technical parameters
| Model | Current rating (A) | Rated voltage (V) | Breaking capacity | Earthing leakage action current | Tripping feature | Wiring | Width |
| WSB5L-40 | 6, 10, 16, 20, 25, 32, 40 | 230V, 50Hz | 4500A | 30mA, class AC | Type C 5-10In tripping instantaneous | Wires 10mm2 and below | 18mm |
Phase line + neutral line + earth leakage
The product meets standard IEC 61009 and GB 16917.1
